antennas.us Introduces Wideband ISM Antenna

The SL-5501-344 is a wideband antenna for high bandwidth data/telemetry and ISM applications within the spectrum of 5.0-6.0 GHz. It measures 4 cm/1.5" OD x 11 cm/4.5" H and is designed to conveniently mount onto any structure, by means of a single 1/4" (6.4 mm) hole. Its internal radiating structure is self-contained and operates well with or without a ground plane. Therefore, it can be mounted on a non-conductive support, as needed by your application.

SPECIFICATIONS:

• Frequency range: 5.0-6.0 GHz
• Coverage: Omnidirectional (1 dB ripple)
• Polarization: Linear, typically Vertical
• Gain: +2 dBil (free space) / +5 dBil (when effectively installed over a ground plane)
• Nominal Impedance: 50 ohm (RF)
• Input Power: 10 Watt CW

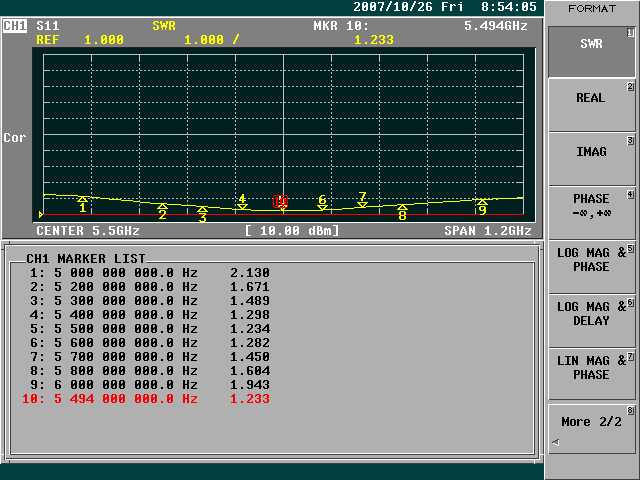

• VSWR: 2.0 GRAPH
• Connector: SMA, Female
• Dimensions: Housing 4 cm (1.5") OD x 11 cm (4.5") h

  Bottom flange 5 cm (2") OD x 13 mm (0.5") h
• Mounting: 1 screw, 1/4"-20
• Operating Temperatures: -40°C to +85°C
• Weight: 250 g / 0.5 lbs
• Shipping Weight: 300 g / 0.6 lbs
